Features

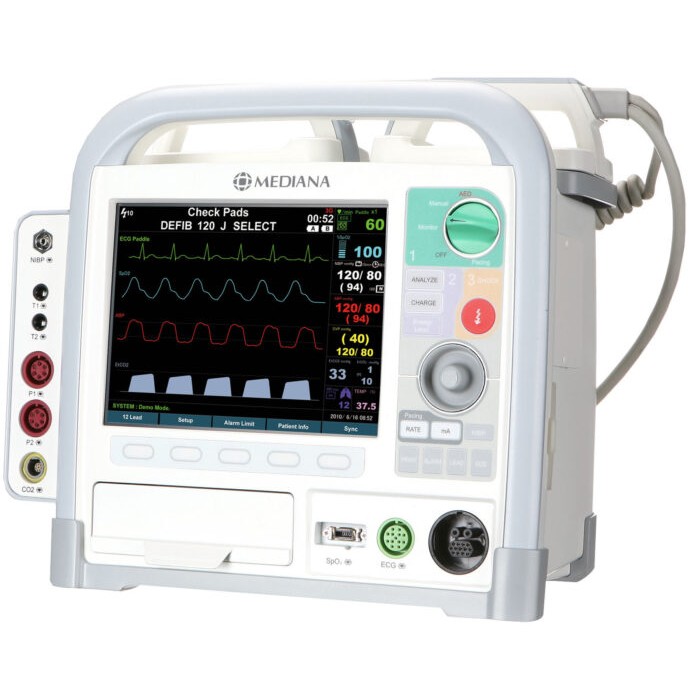

• Multifunctional Defibrillator/Monitor
• Manual and AED Operation
• Non-invasive Pacing Mode
• Advanced Biphasic Technology
• Defibrillation with Paddles
• 12 Lead ECG Monitoring
• Dual battery
• Integrated Thermal printer
Specification
• Display – 8.4” diagonally across the TFT-LCD screen
• Controls – Standard Knob, Mode key (off, AED, Manual, Packing and monitor), 11 buttons (Shock, Select level, Charge, Analyze, NIBP, Lead, Alarm, Size, print, Rate, mA), 5 soft key
• Alarm volume level : 45 to 85 dB
• Physical Characteristic and printer – Dimensions : 340*305*210 (mm) (W*H*D) including a battery – Weight : 6.16kg including battery excluding paddles – ECG: Type CF with defibrillation protection – SpO2: Type CF with defibrillation protection – Temperature: Type CF with defibrillation protection – EtCO2: Type CF with defibrillation protection – NIBP: Type CF with defibrillation protection – IBP: Type CF with defibrillation protection – Paddle: Type CF with defibrillation protection – Mode of Operation : Continuous
• Printer-Thermal – Weight 190g – Number of Channels 1 to 3 channels – Paper Width 80 mm – Printer Speed 25 mm/s
